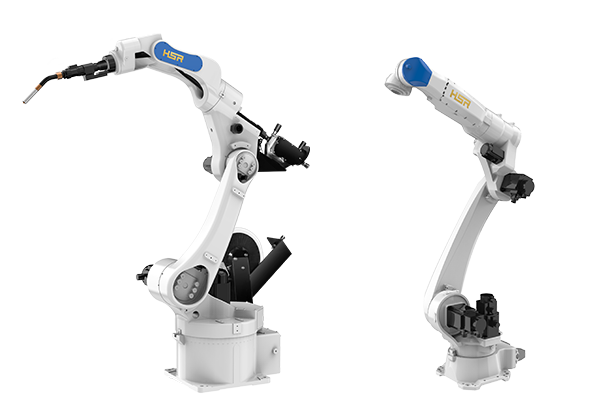

Welding Robot Arm JH Series
The JH Series robots represent a new generation of high-performance welding robots, featuring high rigidity, high speed, high precision, strong stability, fast dynamic response, and high cost-effectiveness.
-
Working radius: 0.7m-2m (large arm span)
-
Payload capacity: 5kg / 10kg / 15kg / 20kg models available

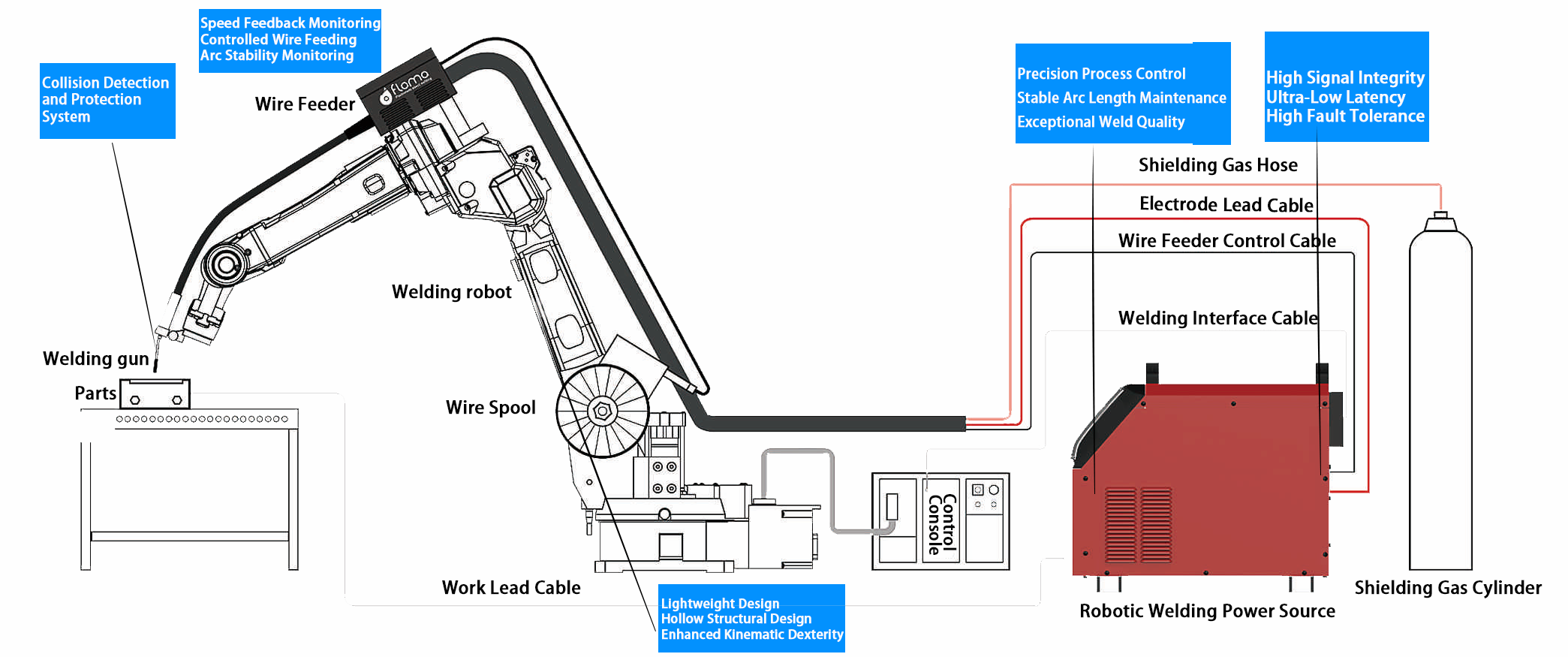

Product Structure
Welding configurations include Standard Waveform Configuration and Low-Spatter Transfer Configuration. The robotic system supports Analog I/O Communication and EtherCAT Fieldbus Communication, compatible with welding power sources from Megmeet, Aotai, Bigow, OTC, and Panasonic.
Six Advantages
The new-generation welding robot employs a hollow-structure arm with lightweight construction and compact design. This effectively eliminates interference between welding cables and peripheral equipment, enabling reliable operation in confined spaces.
Integrated with a dedicated Welding Expert System, it provides: Rapid Process Deployment, Automatic Arc Recovery, Intelligent Weaving Control, Positioner Synchronization, Collision Detection System.
Integrated with a dedicated Welding Expert System, it provides: Rapid Process Deployment, Automatic Arc Recovery, Intelligent Weaving Control, Positioner Synchronization, Collision Detection System.
Hollow Structural Design
Compatible with all industry-standard hollow-structure welding torches (air/water-cooled)
Fail-Safe Cable Connection System
Cables withstand million continuous flexing cycles, ensuring stable robotic operation
Integrated Multi-Functional Architecture
50mm² High-Flex Welding Cable Integrated Gas Hose and 12-Core Shielded Control Cable
Collision Detection System
Multi-Level Safety Mode Implementation
High-Speed Cycle Operation with Zero-Failure Performance
High-Speed Cycle Operation with Zero-Failure Performance
Comprehensive welding functions
Co-welding with positioner
Flying arc starting function
Arbitrary jumping in, forward and backward checking function
Flying arc starting function
Arbitrary jumping in, forward and backward checking function
Easy to Use
Iconized operation, fast schematic programming
Parameter editing and debugging means, high debugging efficiency
Parameter editing and debugging means, high debugging efficiency
Appilcation Video
Welding robot JH Series are widely applicable across various welding fields to empowering enterprises to seamlessly achieve welding automation.
