6-axis industrial joint robot JR series

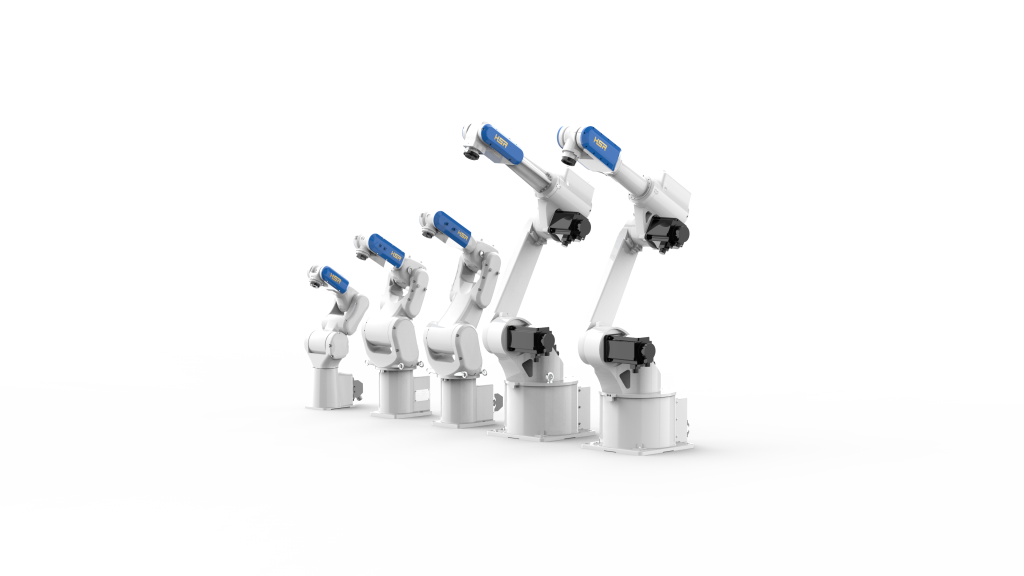

JR Series light payload robots feature a modular arm design. They are lightweight, compact in structure, capable of high-speed operation and high repeat positioning accuracy, improving assembly efficiency and yield rates, with stable and reliable performance. They meet flexible production demands and can be quickly deployed.
Max. Payload: 3kg – 12kg
Max. Working Radius: 570mm – 1600mm
Repeat Positioning Accuracy: ±0.02mm – ±0.06mm

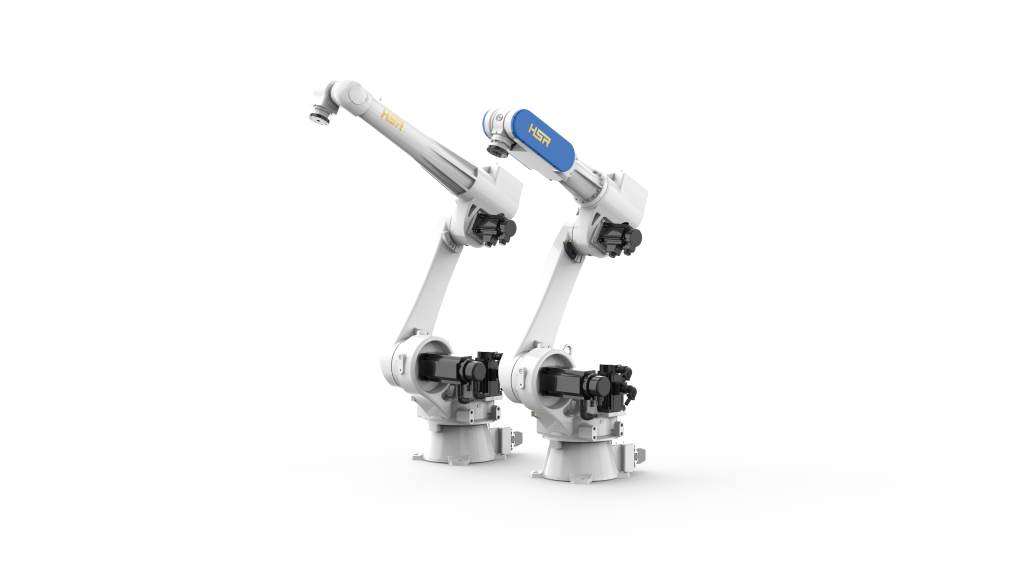

JR Series medium payload robots utilize precision engineering, structural optimization, and are equipped with an advanced control system and servo drive system. They offer high accuracy, strong acceleration capability, large working range, and high rigidity, easily handling applications in palletizing, assembly, grinding, and welding. To meet diverse customer demands, auxiliary axis functions can be customized.
Max. Payload: 18kg – 30kg
Max. Working Radius: 1700mm – 2000mm
Repeat Positioning Accuracy: ±0.02mm – ±0.06mm

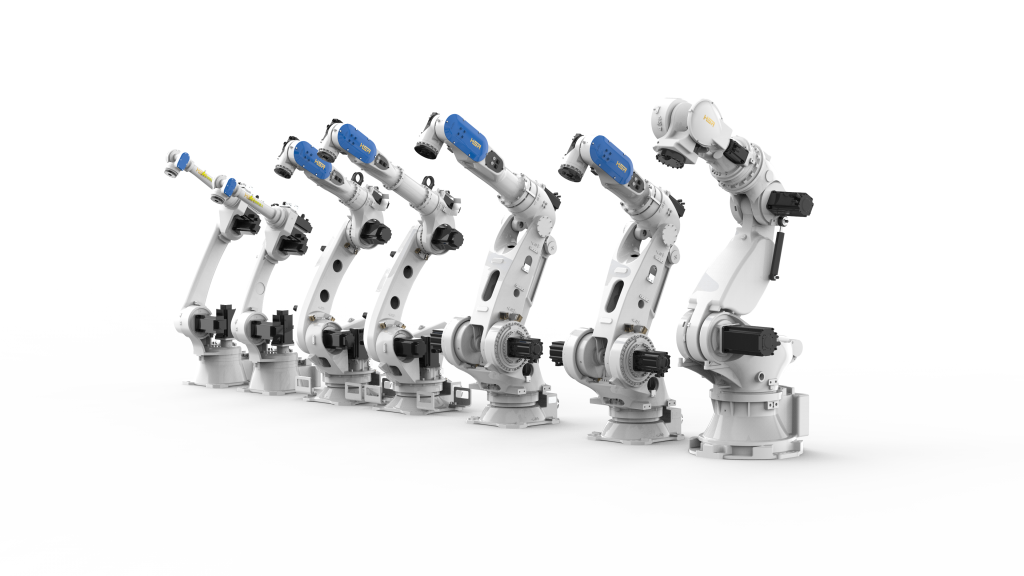

JR Series heavy payload robots offer a rich selection of configurations, enabling rapid adaptation to various industry application needs. They are an ideal choice for manufacturing to improve production efficiency, product quality, and achieve low-cost operation.
Max. Payload: 50kg – 500kg
Max. Working Radius: 2200mm – 3100mm
Repeat Positioning Accuracy: ±0.05mm – ±0.1mm

6-axis industrial joint robot JR series heavy payload robots

Six Advantages

JR Series robots, as traditional vertical articulated robots, offer a payload range from 3kg to 500kg and a reach from 500mm to 3100mm, providing over 20 robot models. They are characterized by high precision, high rigidity, high stability, and strong versatility

High Rigidity

Structurally optimized with high-power motors and premium materials

Stability & Reliability

Next-gen dynamics algorithms and torque feedforward control; >80,000 hours MTBF

High Path Smoothness

Near zero pause at transition points via advanced control and servo systems

IP67 Full-Body Protection

Sealed design for oil/water environments (e.g., palletizing, loading)

High Speed & High Precision

±0.05mm repeat positioning accuracy; 0.3s fastest acceleration time

High Cost-Effectiveness

Low-cost 6-axis robots for palletizing, handling, assembly, grinding, welding

Targeting Industry

Targeting industries like 3C Electronics, Kitchen & Bathroom Fixtures, Lithium Battery, Automotive, and Metal Processing, 6-axis industrial joint robot JR series obots provide corresponding application process packages. Combined with offline programming technology and digital technologies, they demonstrate the characteristics of wide applicability, excellent stability, and strong specialization.
