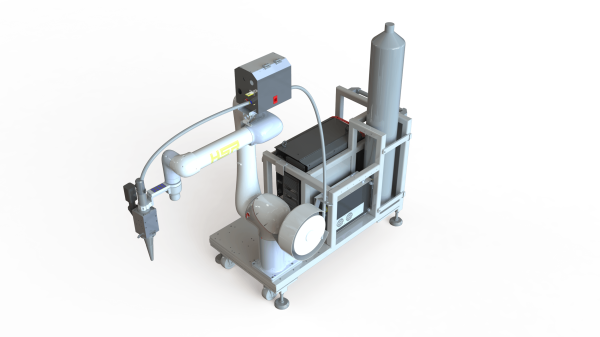

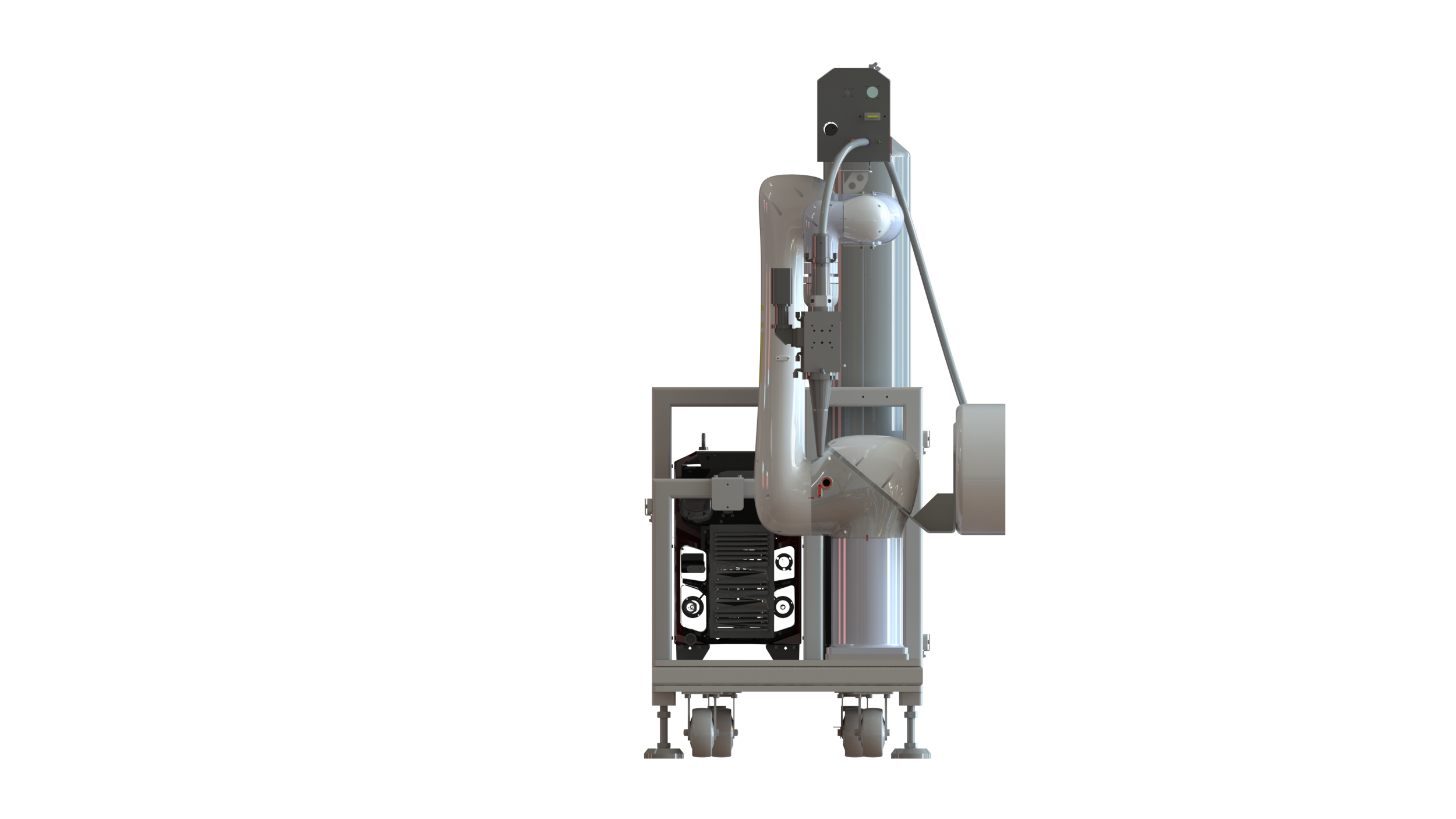

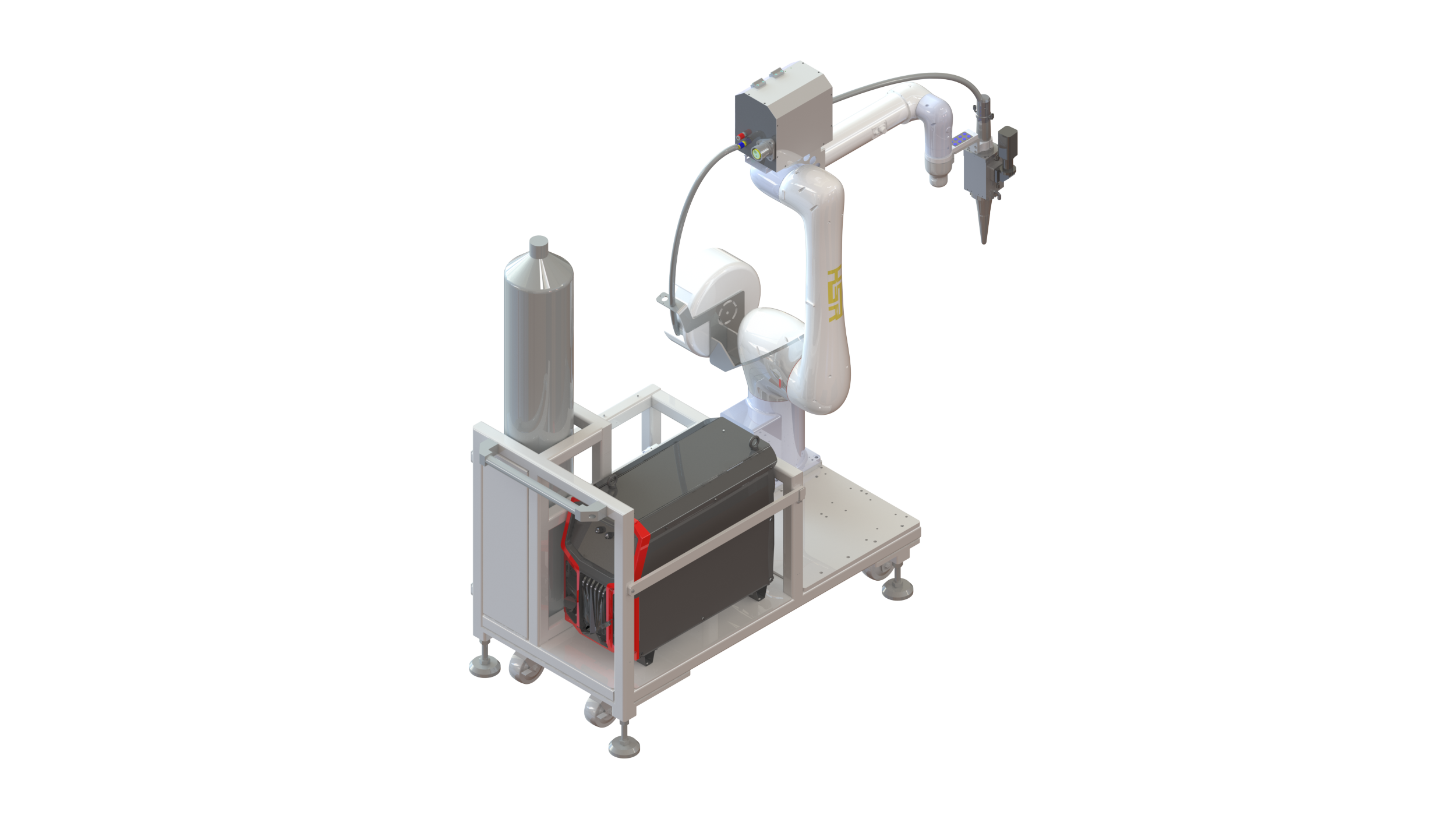

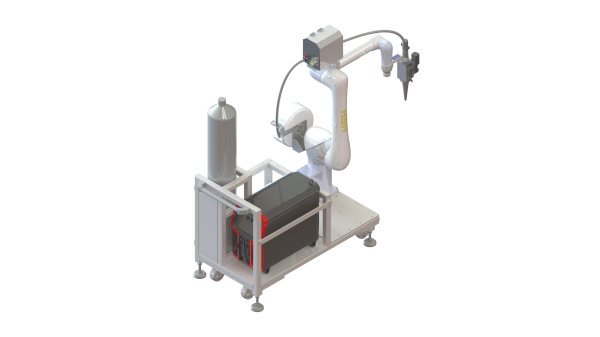

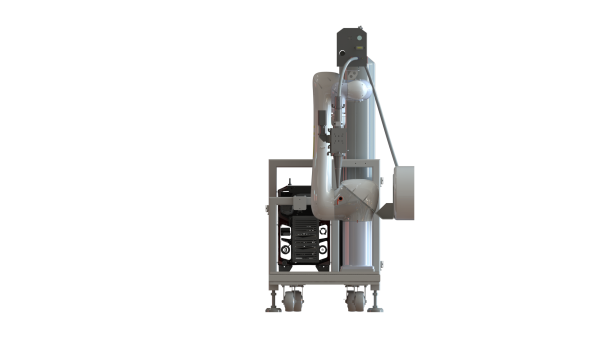

Laser Welding

  • Special welding robot, light weight and compact structure.
  • Supports fast switching of working environment.
  • Simple teaching, convenient and fast.
  • Trajectory accuracy is better than 1mm, and repeatability is better than ±0.03mm.
  • The laser power is continuously adjustable and has high beam quality.
  • The laser has high stability and is suitable for applications such as laser fine cutting and precision welding.
Inquiry
Serial number Item technical parameters
1 Robot motion range (mm) 1455
2 Robot load (kg) 10
3 Welding material Carbon steel/stainless steel/aluminum-magnesium alloy
4 Wire feeding method Automatic wire feeding
5 Working voltage (VAC) 200~240
6 Laser power (W) 1500
7 Working environment temperature (℃) 10 ～ 40
8 Working environment relative humidity (%) 10 ～ 85
9 Storage temperature (℃) -10～ 60
10 Galvanometer frequency (Hz) 200
11 Spot width (mm) 0～ 5
12 Wire diameter (mm) 1
13 Cooling method Water cooling
14 Shielding gas Pure argon
15 Welding plate thickness (mm) 3~5

Options

  1. Multiple series of different models of robots can be selected.
  2. Positioner can be equipped.
  3. Different brands and models of welding guns and welding machines can be equipped.
  4. Welding fume purifier can be equipped.
  5. Magnetic base or mobile trolley can be equipped.
  6. Force control drag function can be equipped, free of point.
  7. Weld seam tracking sensor can be equipped.
  8. Teaching-free system can be equipped.



Main configuration

Serial number Name Specification/Description
1 Base Steel structure welding
2 Industrial robot 6 axis, motion range 785mm
3 Welding gun Global welding gun, standard length, gas cooling, conductive nozzle 40*1.0 chrome zirconium copper
4 Wire feeder Megmeet original wire feeder, wire feed wheel 0.8/1.0, wire reel
5 Welding machine Megmeet Artsen Plus 350D R
6 Shielding gas 80% argon 20% carbon dioxide
7 Welding plate thickness 3mm or less
