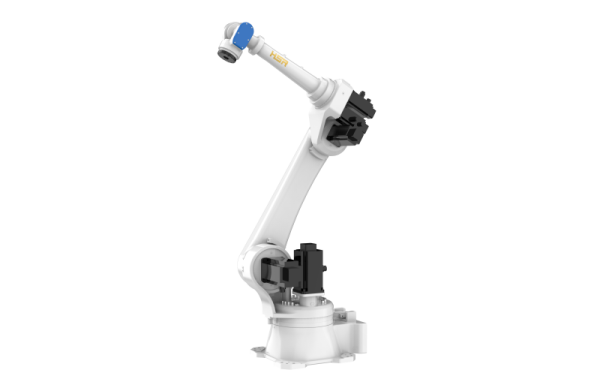

JR650-2400
JR650-2400 fully considers the process requirements of handling, welding and machining in the design, suitable for more stringent working conditions, and can provide strong support for many applications.
| Product model | HSR-JR650-2400 | |
| Degree of freedom | 6 | |
| Payload | 50kg | |
| Maximum operate radius | 2400mm | |
| Repeat positioning accuracy | ±0.08mm | |
| J1 | ±180° | |
| J2 | -160°/70° | |
| Range of motion | J3 | +10°/265° |
| J4 | ±360° | |
| J5 | ±105° | |
| J6 | ±360° | |
| J1 | 127°/s，2.21rad/s | |
| J2 | 127°/s，2.21rad/s | |
| J3 | 104°/s，1.81rad/s | |
| J4 | 177°/s，3.08rad/s | |
| Maximum speed | J5 | 155°/s，2.70rad/s |
| J6 | 187°/s，3.26rad/s | |
| J6 | 25kg㎡ | |
| J5 | 32.7kg㎡ | |
| J4 | 32.7kg㎡ | |
| J6 | 330Nm | |
| Allowable moment of inertia | J5 | 340Nm |
| J4 | 400Nm | |
| Temp | 0°C～45°C | |
| Humidity | 20%～80% | |
| Allowable ptorque | Other | Av)oid contact with inflammable or corrosive gas |
| Stay away from eleliquidctronic noise(plasma | ||
| Teach pendant cable length | 8m | |
| connect cable length | 8m | |
| I/O parameters | Pins：32Pin input(NPN)，30Pin output(NPN) ； | |
| Body Reserved Signal Line | 26Pin(solder connnected avaition plug) | |
| Pneumatic tube | 2*Φ10 | |
| Battery capacity | 7.5kVA | |
| Rated power / Voltage / Current Body/Electric Cabinet | 5.5kW/3相AC380V/10.8A | |
| Protection Level | P54(robot arm IP65) /IP54 | |
| Installation method | Ground | |
| Machine/power box weight | 750kg/138kg | |
Product content:
JR650-2400, medium load robot, medium load applied to palletizing, welding, handling market advantages are particularly obvious, help to enhance the degree of enterprise intelligence, strengthen the production safety of enterprises.
The robot has a maximum load capacity of 50kg and a maximum arm span of 2400mm. After reasonable design of tooling and fixture, the robot can achieve repeated positioning accuracy of no more than 0.08mm. It can be widely used in handling, cutting, polishing, palletizing and other industries.
Parameter diagram:
