Payload：25Kg
Arm Span：1849.5mmDouble Spin Robot BR625 Introduction:

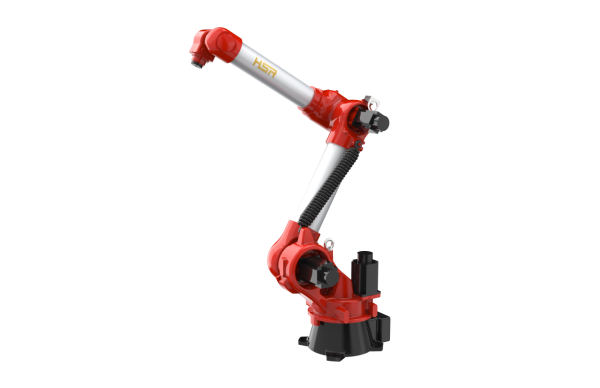

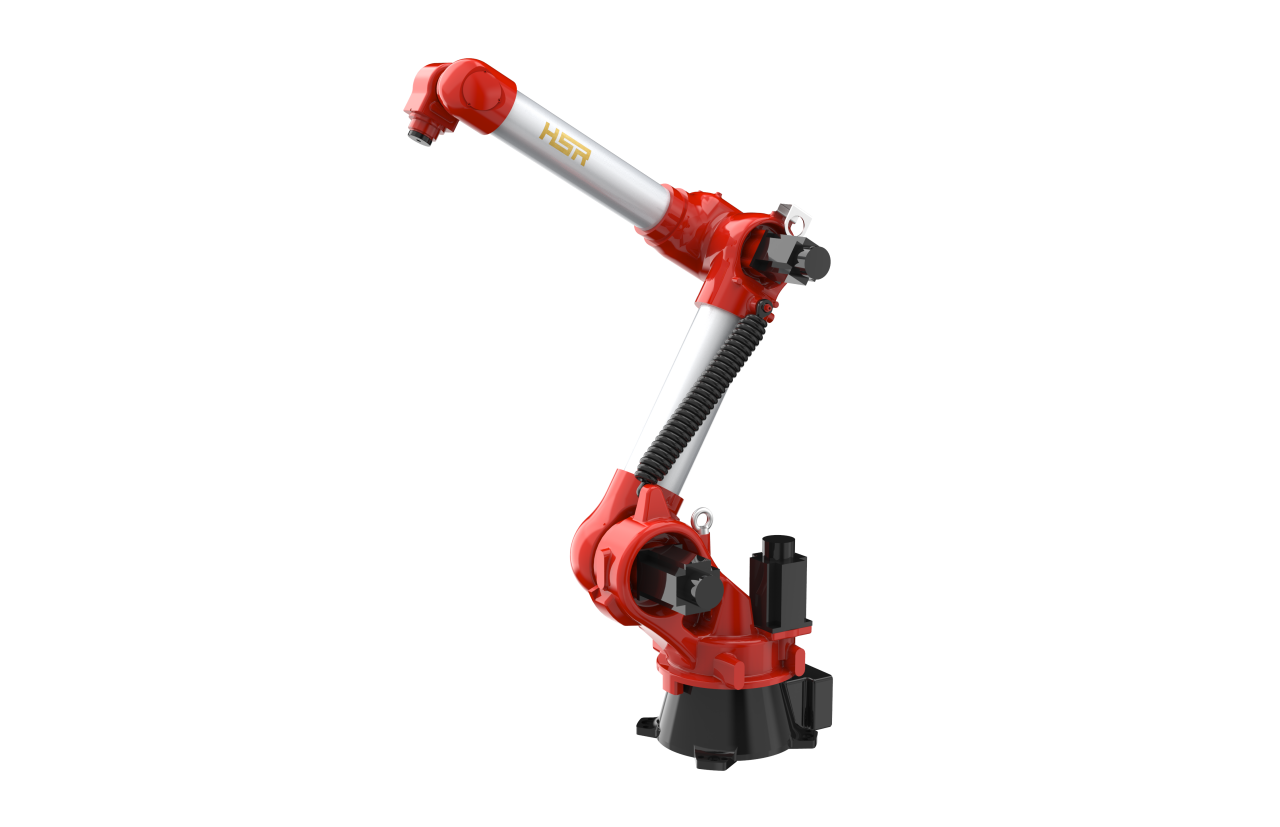

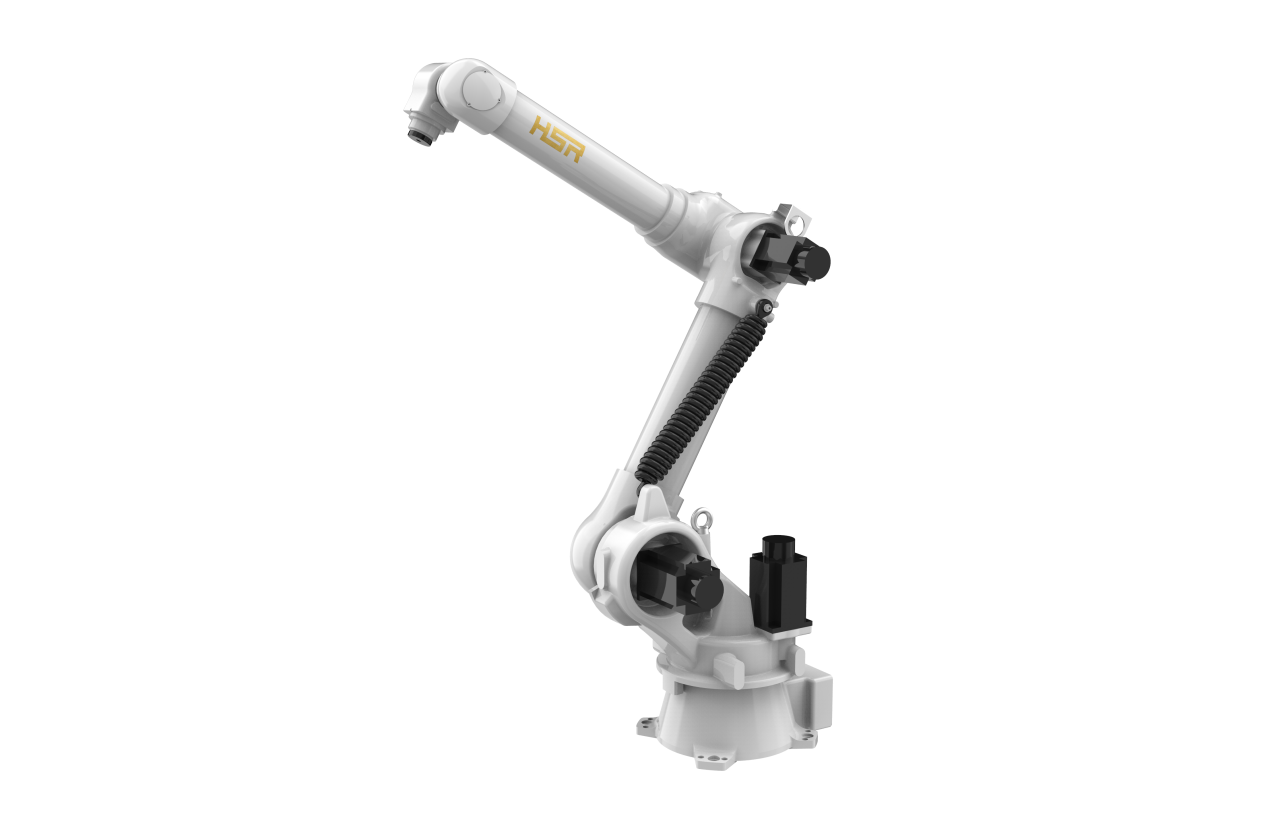

BR625-1900 double spin robot is based on the BR series of robots, optimized and upgraded, developed a powerful power, fast speed, load up to 25kg two-spin robot, effective working radius of 1849.5mm.
The industrial robotic is double-spin structure, and it has minimal installation space. it’s 4th, 5th, and 6th axes are hollow arms with built-in cables.
At the same time, it meets the double requirements of high load and long working radius, super long arm span, large load flexible operation, to ensure all-round detection, no operation blind spots, can avoid small space restrictions, and truly achieve the purpose of improving product quality.
Dual-rotation Robot BR625 Advantages:
1, lightweight design, 210KG body weight, can achieve 25KG flexible handling;
2, double-spin structure, can avoid the restrictions of small space can not work;
3, the beat time is short, to meet the faster working rhythm;
4, hollow arm design, the cable, gas pipe built in it, more secure;
5, cost-effective, positioning as a popular 25KG robot.
BR625 Parameter
| Product model | HSR-BR625-1900 | |
| Degree of freedom | 6 | |
| Payload | 25Kg | |
| Maximum operate radius | 1849.5mm | |
| Repeat positioning accuracy | ±0.05mm | |
| J1 | ±155° | |
| J2 | -178°/-2° | |
| Range of motion | J3 | +128°/+412° |
| J4 | ±360° | |
| J5 | ±131° | |
| J6 | ±360° | |
| J1 | 233°/s，4.06rad/s | |
| J2 | 235°/s，4.10ad/s | |
| Maximum speed | J3 | 285°/s，4.97rad/s |
| J4 | ||
| 487°/s，8.49rad/s | ||
| J5 | 487°/s，8.49rad/s | |
| J6 | 487°/s，8.49rad/s | |
| Allowable moment of inertia | J6 | |
| 1.43㎏㎡ | ||
| J5 | 2.65kg㎡ | |
| J4 | 2.42kg㎡ | |
| J6 | ||
| Allowable ptorque | 38.7Nm | |
| J5 | 77.5Nm | |
| J4 | 57.5Nm | |
| Applicable | Temp | 0°C~45°C |
| environment | Humidity | 20%~80% |
| Other | Avoid contact with inflammable or corrosive gas and | |
| liquid, Stay away from electronic noise(plasma) | ||
| Teach pendant cable length | 8m | |
| Machine- Power box | 6m | |
| connect cable length | ||
| I/O parameters | Pins：32Pin input(NPN)，30Pin output (NPN) ； | |
| Body Reserved Signal Line | 24Pin(aviation plug) | |
| Pneumatic tube | 2*Φ8 | |
| Battery capacity | 6.5kVA | |
| Rated power / Voltage / Current | 5.2kW/3 Phases 380V/10A | |
| Body/Electric Cabinet | IP54(front end IP67) /IP53 | |
| Protection Level | ||
| Installation method | Ground、Upside down、Side mount | |
| Machine/power box weight | 210kg/91kg | |
Double Spin Robot BR625 Workspace Diagram:
BR625 Application
Suitable for assembly, loading and unloading, handling, stamping, PCB industry and dense arrangement of drill center configuration, very cost-effective.
