Payload：12Kg

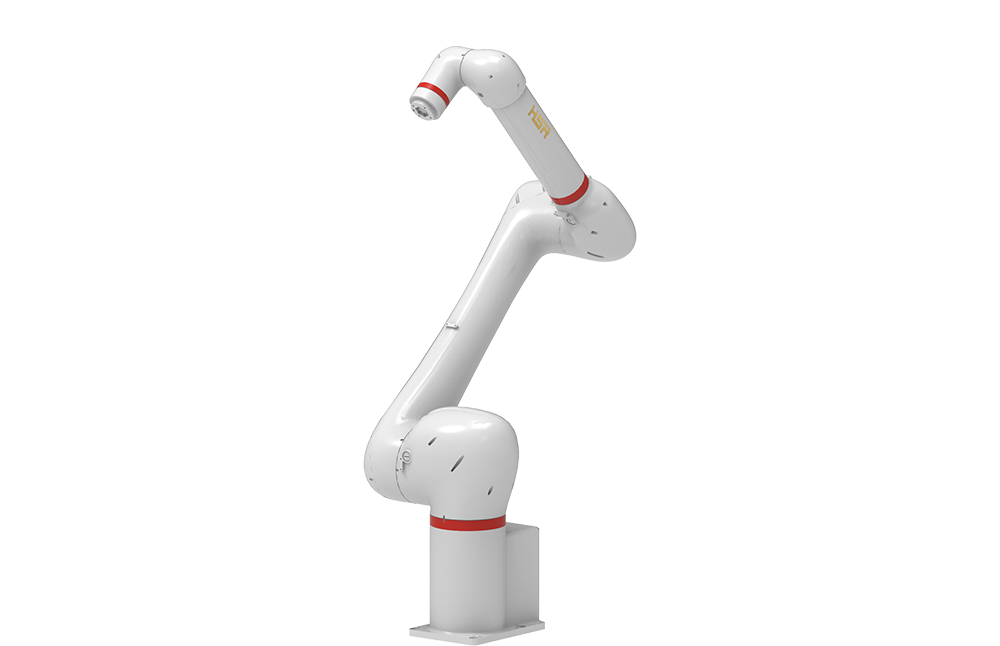

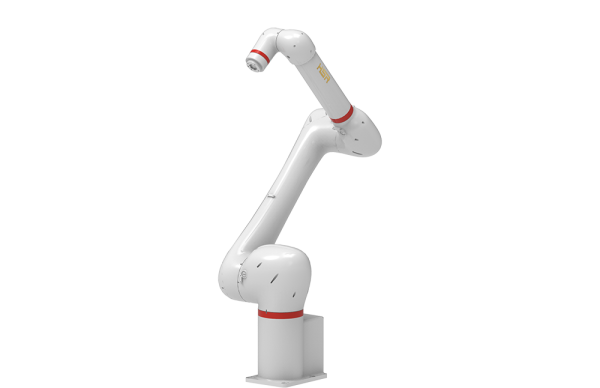

Arm Span：1455mmCollaborative Robot CR612 Introduction
The CR612 industrial collaborative robot has the following functions: collision detection, drag teaching, high precision, high rigidity, and high protection. Compared with traditional industrial robots and collaborative robots, it not only possesses the high-speed, high-precision, and high rigidity characteristics of industrial robots, but also the safety, reliability, and easy operation characteristics of collaborative robots. The robot has a protection level of IP67 and can handle different application scenarios.
Suitable for application scenarios such as assembly, loading and unloading, gluing, welding, and screw locking.
Cobot CR612 Advantages:
Compared with traditional industrial robots and collaborative robots, the biggest difference is that the working mode has high-speed mode and collaborative mode. The robot in high-speed mode is more efficient, and the robot in collaborative mode is more intelligent and safer.
CR610 Parameter
| Product model | HSR-CR612-1500 | |
| Degree of freedom | 6 | |
| Payload | 12 kg | |
| Maximum operate radius | 1455mm | |
| Repeat positioning accuracy | ±0.03mm | |
| J1 | ±360° | |
| J2 | ±360° | |
| Range of motion | J3 | ﹣75°/﹢255° |
| J4 | ±360° | |
| J5 | ±360° | |
| J6 | ±360° | |
| J1 | 240°/S/ 4.18rad/s | |
| J2 | 250°/s，4.36 rad/s | |
| Maximum speed | J3 | 240°/S / 4.18rad/s |
| J4 | ||
| 480°/s，8.38 rad/s | ||
| J5 | 360°/s，6.28rad/s | |
| J6 | 720°/s，12.56 rad/s | |
| Allowable moment of inertia | J6 | |
| 0.45kgm² | ||
| J5 | 1.04kgm² | |
| J4 | 0.59kgm² | |
| J6 | ||
| Allowable ptorque | 15Nm | |
| J5 | 31Nm | |
| J4 | 23Nm | |
| Applicable | Temp | 0~50°C |
| environment | Humidity | 20%~80% |
| Other | Avoid contact with inflammable or corrosive gas and | |
| liquid, Stay away from electronic noise(plasma) | ||
| Teach pendant cable length | 8m | |
| Machine- Power box | 3m | |
| connect cable length | ||
| I/O parameters | Pins：32Pin input，32Pin output | |
| Body Reserved Signal Line | 12Pin(aviation plug) | |
| Pneumatic tube | 1*Φ6 | |
| Battery capacity | 2.8KVA | |
| Rated power / Voltage / Current | 2.23KW/Single AC220V/12.1A | |
| Body/Electric Cabinet | IP67/IP20 | |
| Protection Level | ||
| Installation method | Ground、Upside down | |
| Machine/power box weight | 55KG/15KG | |
Collaborative Robot CR612 Workspace diagram
Cobot CR612 Application
The CR612-1500 robot has the characteristics of high speed, high precision and high rigidity, and is suitable for assembly, loading and unloading, gluing, welding, screw locking and other application scenarios.
