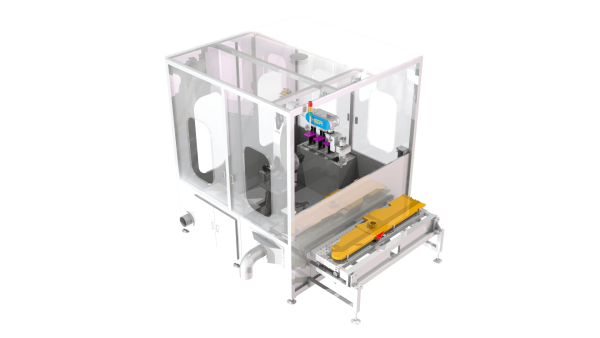

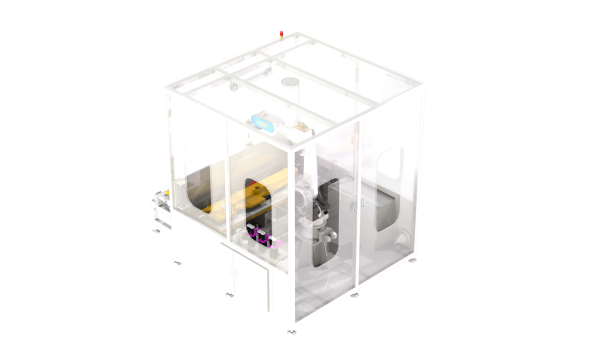

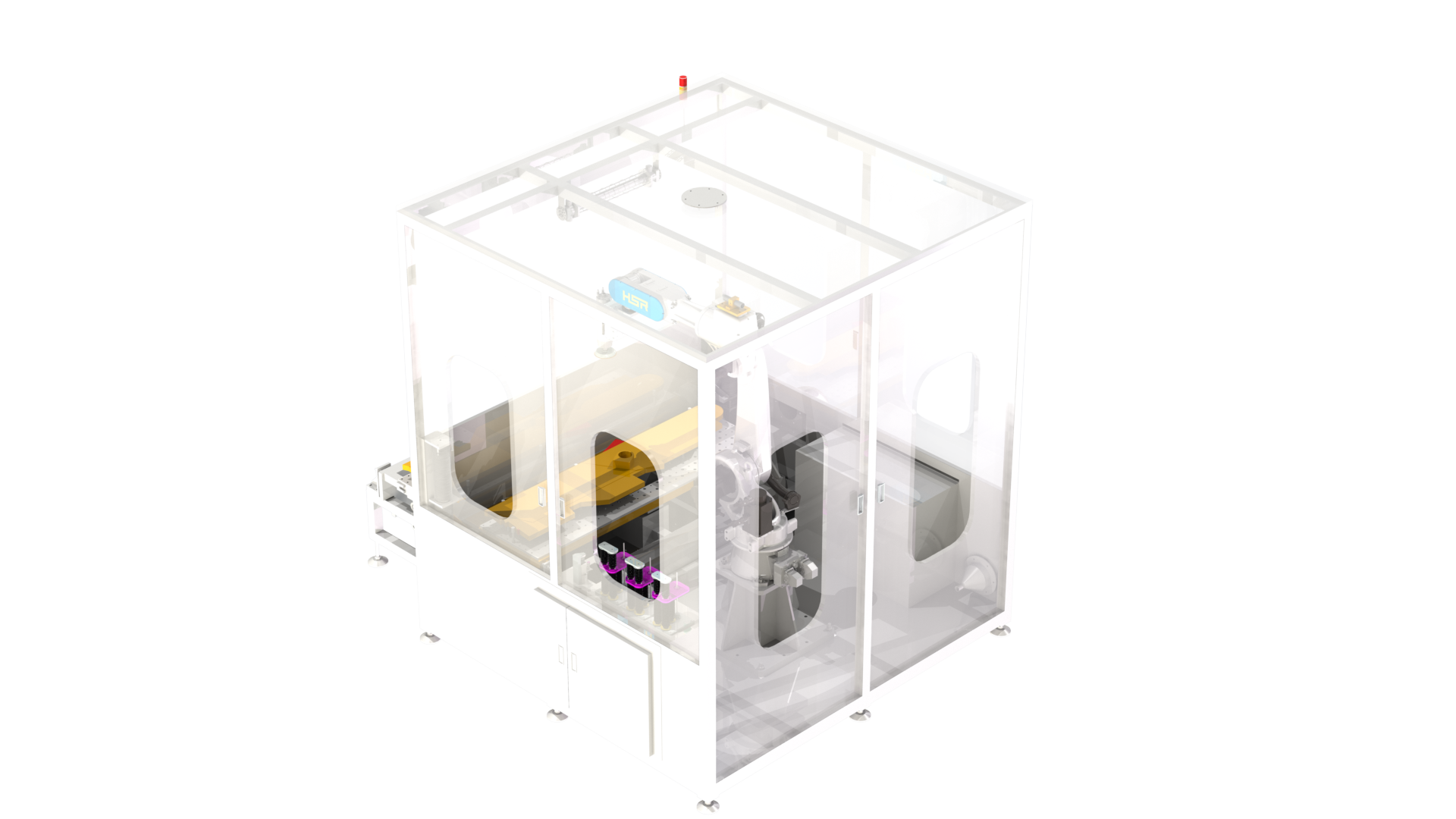

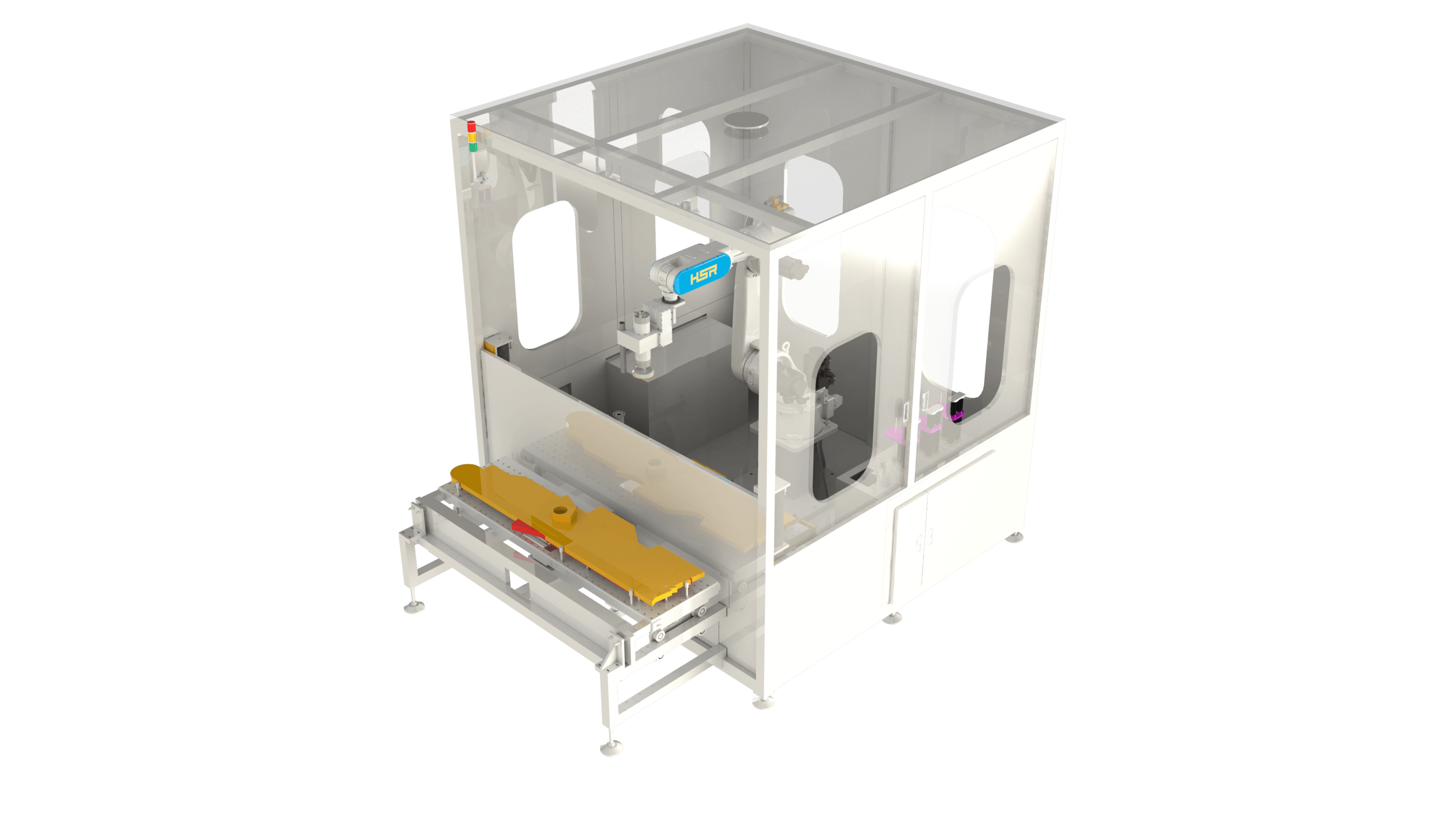

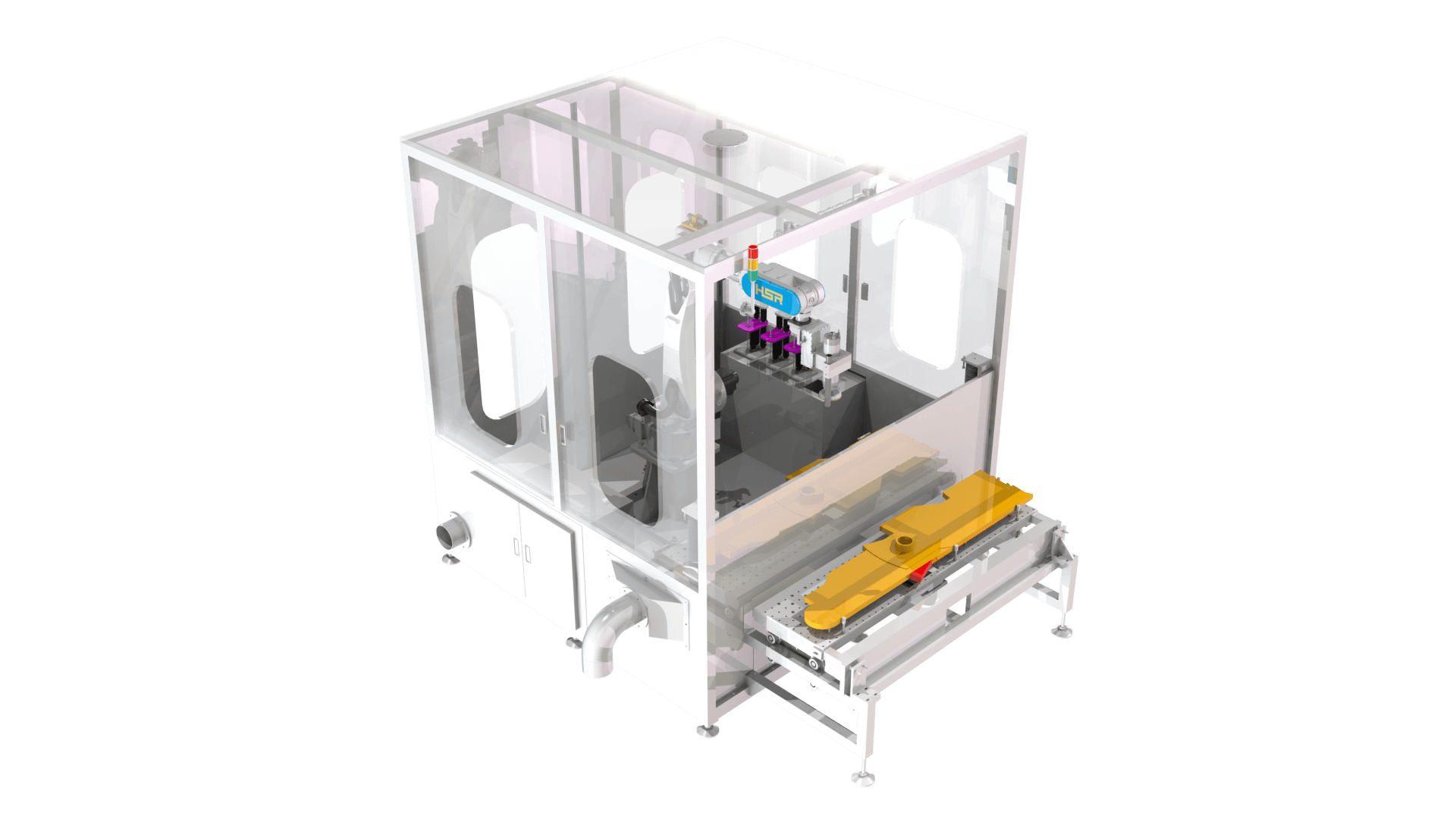

Panel Grinding

  • Closed grinding room, external dust collection system.
  • Can be used for grinding multiple types of panels.
  • With force control floating system.
  • The robot can automatically change sandpaper.





Inquiry
Serial number Item technical parameters
1 Equipment size (length, width and height: mm) 3100*2400*2700
2 Robot motion range (mm) 1800
3 Robot load (kg) 20
4 Grinding system Force control
5 Force control range (N) 3-100
6 Floating stroke (mm) 20
7 Force control accuracy (N) ±1
8 Position accuracy (mm) 0.1
9 Grinding head 800w electric spindle
10 Grinding tool 5-inch sandpaper
11 Grinding workpiece size (mm) 1700*900
12 Operation interface PLC touch screen
13 Equipment connection (wiring) method Network cable
14 Communication protocol ModbusTCP communication, I/O, EtherCAT communication;
15 Power supply Three-phase 380 V AC
16 Power connection method Plug-in type
17 Power (KW) 10
18 Gas consumption (L/Min) 120

Options

  1. Optional multi-series and different models of robots.
  2. Customized feeding tooling.
  3. Optional multi-specification force control system.
  4. Customized robot grinding tools.
  5. Optional quick change system.



Main configuration

Serial number Name Specification/Description
1 Polishing room Steel structure welding, profile sheet metal construction
2 Industrial robot 6 axis, load 20kg, range of motion 1800mm
3 Polishing tools Force-controlled electric spindle + sandpaper
4 Feeding Automatic retractable, manual loading and unloading, with positioning side pins
5 PLC touch screen Human-machine interface, basic operation of equipment, monitoring equipment working status
6 Control system PLC module, connecting robot, sand changing mechanism, feeding mechanism, safety system, etc.
